[tutorial] How to display free space left on LCD

#1

Post by mstef » 09 Dec 2013 22:04

Hi. I have a 16x2 VFD display HD44780 compatible with LCD2USB adapter. I want to simple show free space on ZFS zpool but regular LCDproc client is not good enough for me because it can't be customized, it shows all mounted points. So I wrote simple script in bash. I can't use python tools because they are not included in embedded version of NAS4free. So...

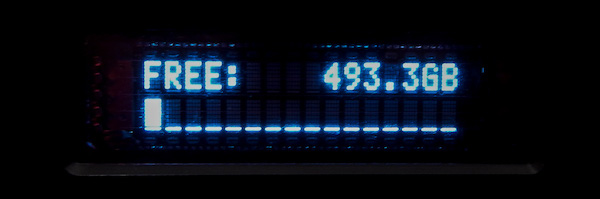

This is how it looks:


Install guide:

1. Be sure your LCD is connected and it works with standard LCDproc client.

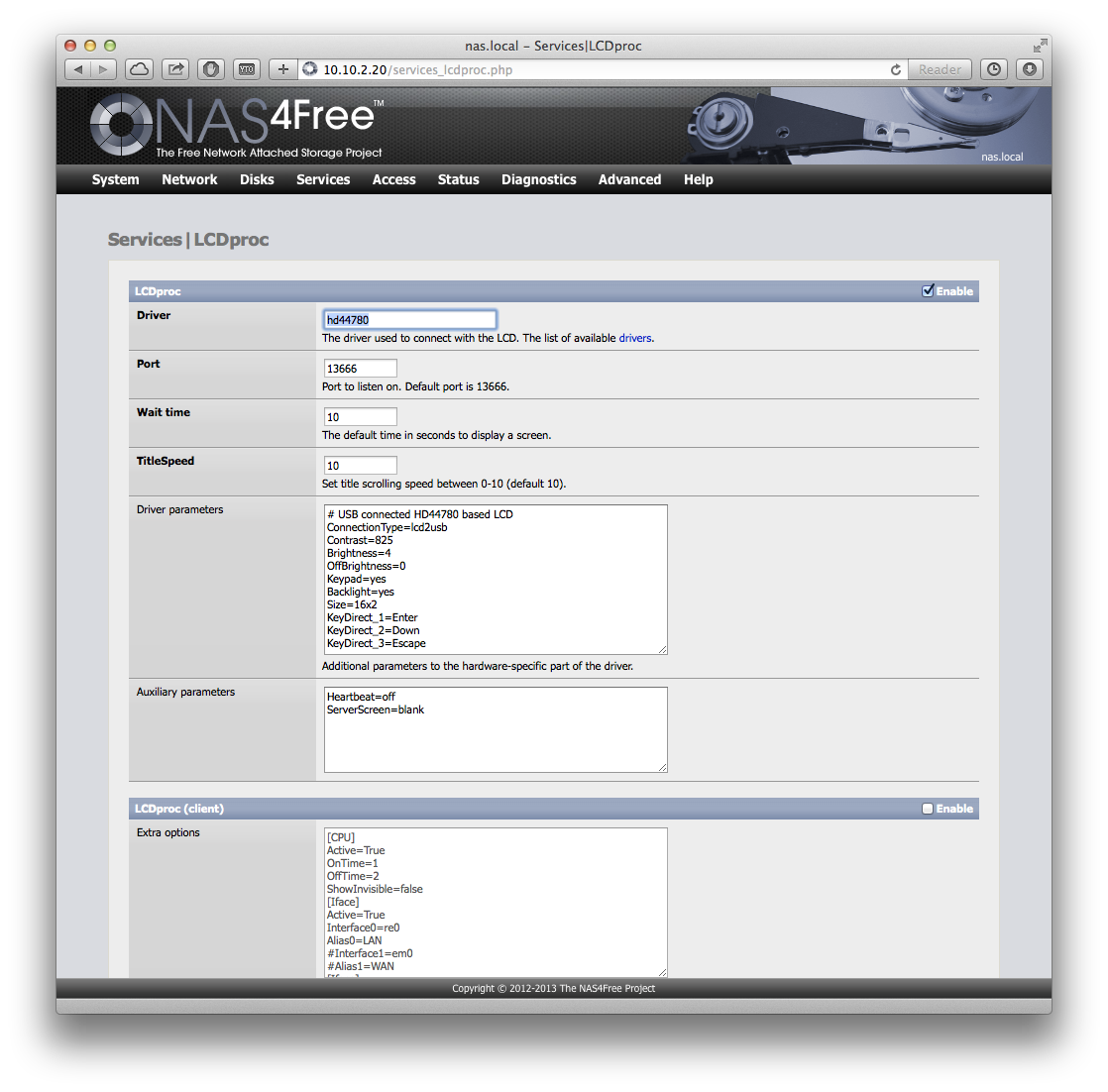

2. Check that LCDproc server is enabled, check LCD size (16x2) and connection type (lcd2usb).

Services > LCDproc



In Auxiliary put this two lines:

Code: Select all

Heartbeat=off
ServerScreen=blank
[*]LCDproc client should be disabled

[*]Save and restart

3. Put lcdfree.sh script somewhere, for example on your ZFS pool dataset; in my case the path is /Storage/Media/nasfree.sh

ZPOOL constant means ZFS pool name. Main pool is "Storage".

Code: Select all

#!/bin/bash

SERVER="localhost"
PORT=13666
ZPOOL="Storage"
VBAR_CHARS=16
VBAR_HEADER="FREE:"

exec 3<>/dev/tcp/${SERVER}/${PORT}

echo "hello" >&3
echo "screen_add s1" >&3
echo "widget_add s1 w1 string" >&3

i=0
while [ $i -lt $VBAR_CHARS ]; do
	let i=i+1
	echo "widget_add s1 vb$i vbar" >&3
done

while [ true ]; do

	read used avail <<< $(zfs get -Ho value -p used,avail "$ZPOOL" | awk '{ print $1; print $2 }')

	sum=$((used+avail))

	read vused <<< $(echo "" | awk "{printf(\"%.0f\",$used * $VBAR_CHARS / $sum) }")
	let vfree=$VBAR_CHARS-$vused

	read usedh <<< $(awk -v x=$used 'BEGIN {
		split("B KB MB GB TB PB", type)
		for (i=5;y<1;i--)
			y = x / (2^(10*i))
		printf("%.1f%s", y, type[i+2])
	}')
	read availh <<< $(awk -v x=$avail 'BEGIN {
	        split("B KB MB GB TB PB", type)
	        for (i=5;y<1;i--)
	                y = x / (2^(10*i))
	        printf("%.1f%s",y, type[i+2])
	}')

	let padlen=VBAR_CHARS-${#VBAR_HEADER}-${#availh}

	msg="$VBAR_HEADER"
	i=0
	while [ $i -lt $padlen ]; do
		msg="$msg\\ "
		let i=i+1
	done
	msg="$msg$availh"

	echo "widget_set s1 w1 1 1 $msg" >&3

	i=0
	while [ $i -lt $VBAR_CHARS ]; do
		let i=i+1
		if [ $i -le $vfree ]; then
			h=8
		else
			h=1
		fi
		echo "widget_set s1 vb$i $i 2 $h" >&3
	done

	sleep 10

done

cat <&3
exit $?
Download: http://stef.pl/lcdfree/lcdfree.sh

4. Set execute byte:

Code: Select all

chmod +x lcdfree.sh

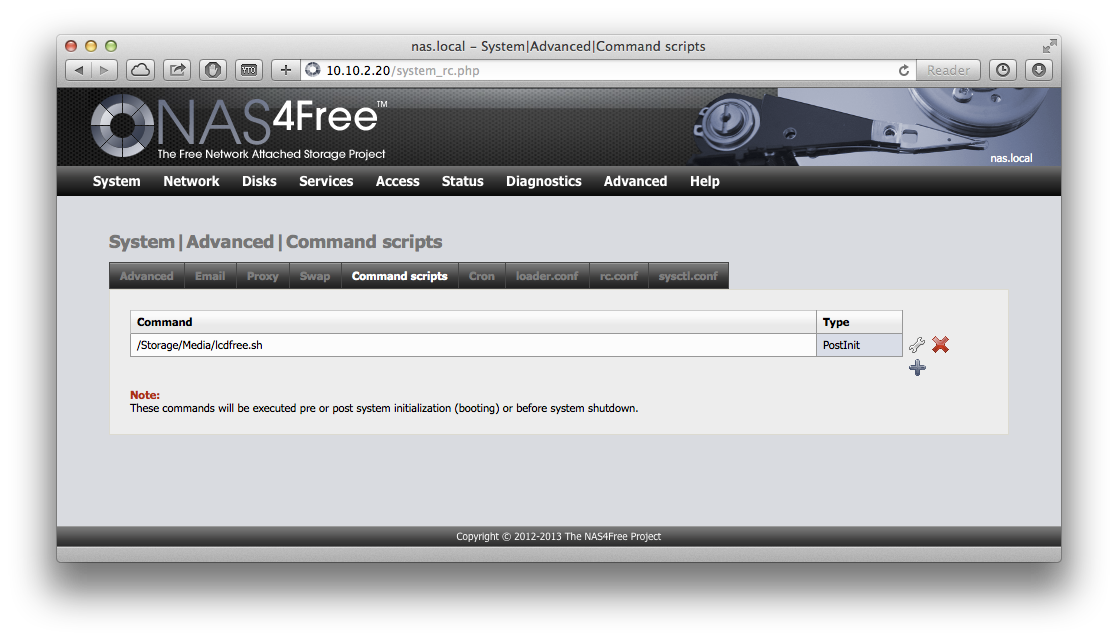

5. Run this script every start on this page:

System > Adanced > Command scripts

Type full path and set PostInit type


Now restart the NAS. That's it. The script doesn't have any data validation or connection check. This script is the one of the first script I wrote in bash so please forgive me any faults I done. Feel free to modify it for your needs.
