NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

Posts only related to Release Builds, all others will be removed!
Forum rules
Set-Up GuideFAQsForum Rules
Post Reply
User avatar
zoon01
Developer
Developer
Posts: 799
Joined: 20 Jun 2012 21:06
Location: Netherlands
Contact:
Status: Offline

NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#1

Post by zoon01 »

The NAS4Free Team is pleased to announce a maintenance release of version 11.0.0.4.3958 - Sayyadina

download build 11.0.0.4.3958
Read the readme_11.0

Because of PHP upgrade and its related code changes: extensions like Extended GUI are not compatible!
Extensions should be disabled before and after upgrades until their creators have updated it's sources.
As we do not create/test those plugins against compatibility, we do not know if more OBI installer plugins are broken!
We are sorry.


Major Change!
Note for 32-bits users:
===================
We believe that the use of 32-bits versions can not give the end users it's full potential of the OS, for this
further development on the (i386) 32-bits architecture has been stopped upon the 11.0.0.3.xxxx series.
Current 32-bits users are able to use 32-bits 10.3.0.3.xxxx series until their end of life or do reinstall
to use 64-bits NAS4Free and restore config.

Again TIP: Do not upgrade from 10 series directly!
reinstall and restore config is the way to go because of increased partition size!
You avoid lots of problems later on.

Upgrade note:
=============
RRDGraphs extension can no longer be used with 11.x series, disable and deinstall before upgrade!
RRDGraphs are now included in 11.x series, you can setup on webgui System > Advanced > Monitoring Setup.
Do not reinstall the extension!!!

BUILD 11.0.0.4.3958

Changes after release 11.0.0.4.3948
===================================
- Upgrade to FreeBSD 11.0-RELEASE-P8.
- Update translations.
- Upgrade nano to 2.7.5.

Bug Fixes
========
- Fix bug zfs on root installer.

Known bugs:
===========
- IE11 and Edge browser does not operate correctly with novnc. Enter & Escape button problematic,
this will be fixed at a later release, use Chrome or other browser or connect with putty client.

Enjoy!

Regards,
The NAS4Free Team
System specs: XigmaNAS 11.2.0.4 -embedded on Samsung 860 EVO 256GB and Supermicro X10SL7-F w / Bios v3.2, IPMI v.03.86 / CPU E3-1241 v3 @ 3.50GHz - 32GB Crucial DDR3L 1600mhz ECC 1.35v , LSI 2308 on PH20.00.07.00 IT mode, Storage: 5x Western Digital Red (WD30EFRX) raidz

Development system is same system in virtualbox.

amaedl
NewUser
NewUser
Posts: 7
Joined: 16 Jun 2015 22:05
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#2

Post by amaedl »

Hi guys,

I am using Nas4free (private) for a couple of years now. Thanks for your great work!
Just updated to 11.0.0.4.3958 without problems

Since Version 11.0.0.4.3330 I experienced kernel panics / reboots when changing configuration and pressing "apply changes" of SMB/CIF or NFS.
(hint: I am using a lagg with load balancing between two 1Gbit Cards)

I assume it is this bug already described here: https://sourceforge.net/p/nas4free/bugs/286/

Regards

amaedl

Victek
Starter
Starter
Posts: 45
Joined: 01 Jul 2012 20:23
Location: Barcelona - Spain
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#3

Post by Victek »

amaedl wrote:
02 Mar 2017 07:52
Hi guys,

I am using Nas4free (private) for a couple of years now. Thanks for your great work!
Just updated to 11.0.0.4.3958 without problems

Since Version 11.0.0.4.3330 I experienced kernel panics / reboots when changing configuration and pressing "apply changes" of SMB/CIF or NFS.
(hint: I am using a lagg with load balancing between two 1Gbit Cards)

I assume it is this bug already described here: https://sourceforge.net/p/nas4free/bugs/286/

Regards

amaedl
I had same issue five versions ago but in my case it was related to the the boot SSD. Any pushing of Save or Apply changes in any menu option reverted in a system reboot. I have two 1Gb LAN cards in LAGG configuration.
Build: XigmaNAS 12.1.0.4 (rev. 7509) amd64-embedded on Sandisk 64GB SSD. Supermicro X10SLL-F-Bios v3.2- Intel(R) Xeon(R) CPU E3-1231 v3 @ 3.40GHz - 32GB Crucial DDR3 ECC (CT102472BD160B), LSI 2008-8i IT mode, Storage: 3x Seagate Ironwolf 10TB. Raidz. Enclosure; Fractal Design R6.

taffeys
Starter
Starter
Posts: 35
Joined: 13 Nov 2013 21:09
Location: San Diego, California USA
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#4

Post by taffeys »

Upgraded my test box (HP N54L, Modified BIOS, 16GB DDR3 1333 ECC RAM, 4GB SLC USB drive, 4 x 4TB Seagate ST4000VN000 NAS HDD (ZFS raid Z1)) from 11.0.0.4.3460 embedded via GUI and it hung (as it has done for the last three or four attempted GUI updates). Did a full embedded install of 11.0.0.4.3958 successfully via iso. Now I see no data under Disk>ZFS>Pools>Information – config (no read or write info as access or scrub is in-process) . Any ideas?
*Dell PowerEdge T20, Xeon E3-1286L v3 3.2GHz (4.0GHz Turbo) 65W TDP, 32GB DDR3L-1600 ECC RAM, Dell 80 PLUS Gold 365W PSU, Intel I350-T2 2-port NIC, LSI 9211-8i HBA ("IT" mode), 7 x 4TB Seagate NAS HDD (ZFS raid Z3 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.
*ASRock Rack E3C226D21 Mini-ITX, Xeon E3-1275L v3 2.7GHz (3.9GHz Turbo) 45W TDP, Noctua NH-L9i CPU cooler, 16GB DDR3L-1600 ECC RAM, picoPSU-160-XT, CFI A6039 NAS Server Mini-ITX Case, 5 x 4TB Seagate NAS HDD (ZFS raid Z1 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.

User avatar
raulfg3
Site Admin
Site Admin
Posts: 5117
Joined: 22 Jun 2012 22:13
Location: Madrid (ESPAÑA)
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#5

Post by raulfg3 »

taffeys wrote:
04 Mar 2017 06:31
Upgraded my test box (HP N54L, Modified BIOS, 16GB DDR3 1333 ECC RAM, 4GB SLC USB drive, 4 x 4TB Seagate ST4000VN000 NAS HDD (ZFS raid Z1)) from 11.0.0.4.3460 embedded via GUI and it hung (as it has done for the last three or four attempted GUI updates). Did a full embedded install of 11.0.0.4.3958 successfully via iso. Now I see no data under Disk>ZFS>Pools>Information – config (no read or write info as access or scrub is in-process) . Any ideas?
do you install full or embeded?.

if embeded try to do a new fresh install in a new USB, and restore your config to discard problem with your actual USB.

PD: you can try push the button cleaan config & import disk, and to sync webgui and detected in ZFS webGUi.
12.0.0.4 (revision 6766)+OBI on SUPERMICRO X8SIL-F 8GB of ECC RAM, 12x3TB disk in 3 vdev in RaidZ1 = 32TB Raw size only 22TB usable

Wiki
Last changes

HP T510

taffeys
Starter
Starter
Posts: 35
Joined: 13 Nov 2013 21:09
Location: San Diego, California USA
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#6

Post by taffeys »

do you install full or embeded?.
As I already explained... Embedded
if embeded try to do a new fresh install in a new USB, and restore your config to discard problem with your actual USB.
There is nothing wrong with the USB key. As I told you before when I had a similar problem with an embedded upgrade I formatted and scanned the entire key with two passes using Rufus with no errors found. So I then had to do a full embedded install at that point.
PD: you can try push the button cleaan config & import disk, and to sync webgui and detected in ZFS webGUi.
I did that first after the update. I just did that again and rebooted. The problem still exists.
*Dell PowerEdge T20, Xeon E3-1286L v3 3.2GHz (4.0GHz Turbo) 65W TDP, 32GB DDR3L-1600 ECC RAM, Dell 80 PLUS Gold 365W PSU, Intel I350-T2 2-port NIC, LSI 9211-8i HBA ("IT" mode), 7 x 4TB Seagate NAS HDD (ZFS raid Z3 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.
*ASRock Rack E3C226D21 Mini-ITX, Xeon E3-1275L v3 2.7GHz (3.9GHz Turbo) 45W TDP, Noctua NH-L9i CPU cooler, 16GB DDR3L-1600 ECC RAM, picoPSU-160-XT, CFI A6039 NAS Server Mini-ITX Case, 5 x 4TB Seagate NAS HDD (ZFS raid Z1 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.

User avatar
raulfg3
Site Admin
Site Admin
Posts: 5117
Joined: 22 Jun 2012 22:13
Location: Madrid (ESPAÑA)
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#7

Post by raulfg3 »

Post: Disks > ZFS > Configuration > Detected

and try to force import of pools from shell or webGUI
12.0.0.4 (revision 6766)+OBI on SUPERMICRO X8SIL-F 8GB of ECC RAM, 12x3TB disk in 3 vdev in RaidZ1 = 32TB Raw size only 22TB usable

Wiki
Last changes

HP T510

taffeys
Starter
Starter
Posts: 35
Joined: 13 Nov 2013 21:09
Location: San Diego, California USA
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#8

Post by taffeys »

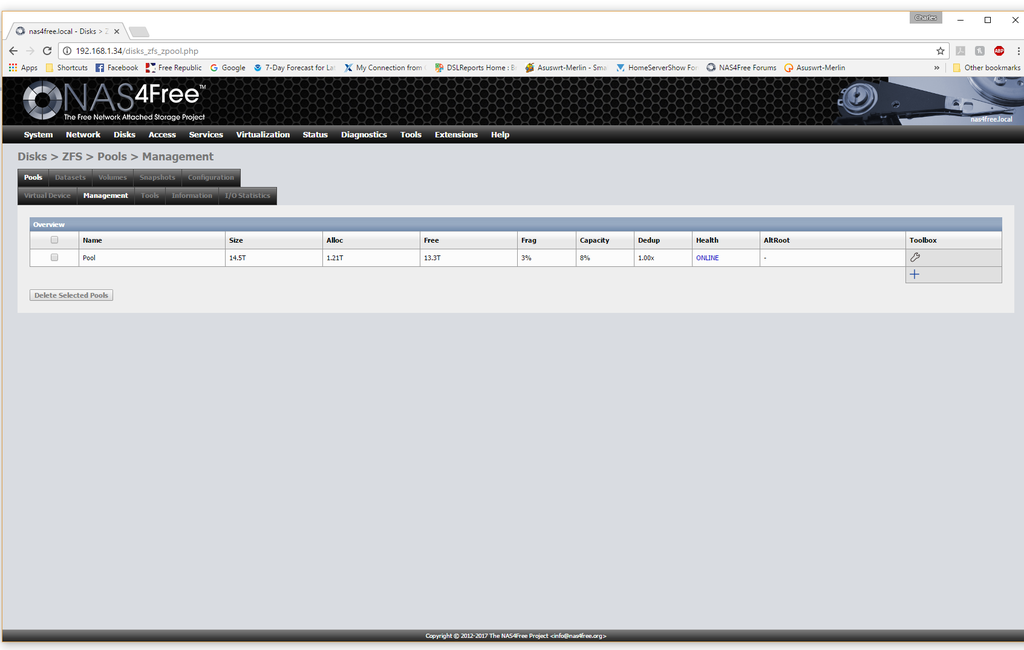

The disks and pool appear to be fine. I can access the shares in the pool without any issues. See what I am talking about:
*Dell PowerEdge T20, Xeon E3-1286L v3 3.2GHz (4.0GHz Turbo) 65W TDP, 32GB DDR3L-1600 ECC RAM, Dell 80 PLUS Gold 365W PSU, Intel I350-T2 2-port NIC, LSI 9211-8i HBA ("IT" mode), 7 x 4TB Seagate NAS HDD (ZFS raid Z3 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.
*ASRock Rack E3C226D21 Mini-ITX, Xeon E3-1275L v3 2.7GHz (3.9GHz Turbo) 45W TDP, Noctua NH-L9i CPU cooler, 16GB DDR3L-1600 ECC RAM, picoPSU-160-XT, CFI A6039 NAS Server Mini-ITX Case, 5 x 4TB Seagate NAS HDD (ZFS raid Z1 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.

User avatar
raulfg3
Site Admin
Site Admin
Posts: 5117
Joined: 22 Jun 2012 22:13
Location: Madrid (ESPAÑA)
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#9

Post by raulfg3 »

The disks and pool appear to be fine. I can access the shares in the pool without any issues. See what I am talking about:
Sorry, but I still have no idea what the problem do you talking about.


this is mine pool:

But , I have a question, why do you use partitions and not entire disk?.
You do not have the required permissions to view the files attached to this post.
12.0.0.4 (revision 6766)+OBI on SUPERMICRO X8SIL-F 8GB of ECC RAM, 12x3TB disk in 3 vdev in RaidZ1 = 32TB Raw size only 22TB usable

Wiki
Last changes

HP T510

NAS4Free4Me
NewUser
NewUser
Posts: 14
Joined: 27 Nov 2012 11:19
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#10

Post by NAS4Free4Me »

OK, let's ask this question in a slightly different manner...

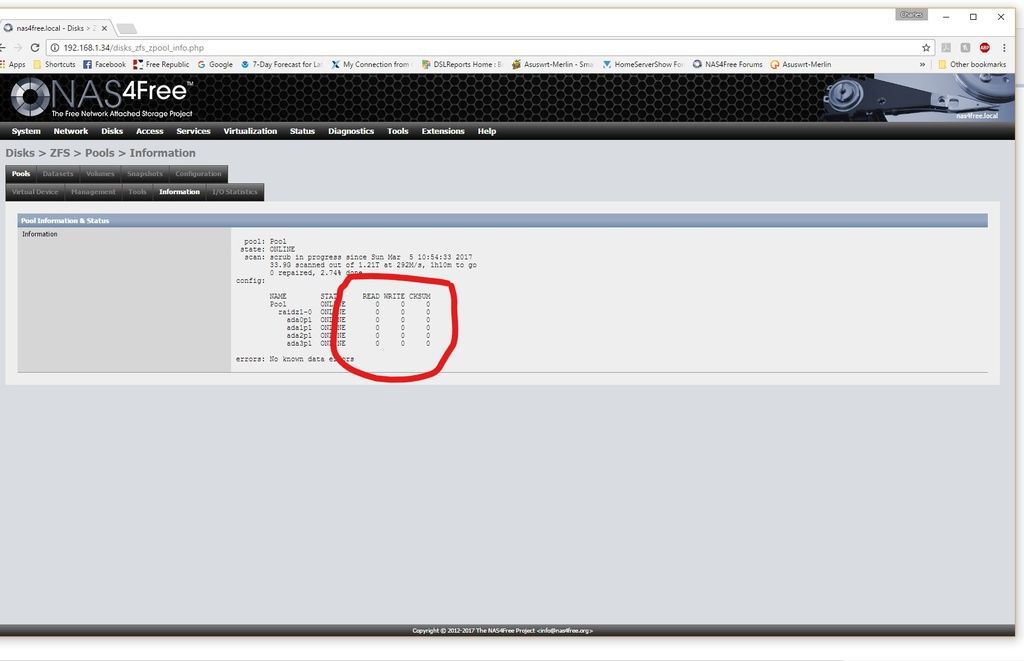

On the ZFS, Pools, Information page there are items listed with 0 (zeros) as the numerical response. Should they be zeros or some other numerical value? What do the zeros represent (ie: errors, faults, speed)? If they represent something else then why are they static at zero when the other page (ZFS, Pools, I/O Statistics) have values of non zeros?

Not trying to start a flame war, just trying to better understand what information is being reported.

BTW, I get the same zero values on the ZFS, Pools, Information page and I don't use partitions.
NAS-A = MB: Asus H87M-E, CPU: Intel i5-4590 CPU @ 3.30GHz, RAM: 16GB, HDD: ZFS-R1 / 3.0 TB (x5) Seagate Barracuda 7200.14 (AF)

User avatar
JoseMR
Hardware & Software Guru
Hardware & Software Guru
Posts: 1143
Joined: 16 Apr 2014 04:15
Location: PR
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#11

Post by JoseMR »

From Oracle Solaris ZFS Administration Guide
Maybe this might help clearing up doubts: Reviewing zpool status Output

Regards
System: FreeBSD 12 RootOnZFS Mirror, MB: Supermicro X8SI6-F, Xeon X3450, 16GB DDR3 ECC RDIMMs.
XigmaNAS RootOnZFS
Addons at GitHub
BastilleBSD
Boot Environments Intro
Resources Home Page

Riften
Starter
Starter
Posts: 15
Joined: 04 Jul 2015 16:02
Location: Los Angeles County
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#12

Post by Riften »

Crazy problem. I do upgrades by using 3 memory sticks (2 Samsung 32gig and an HP 16gig) and rotating them, keeping the previous 2 installs handy in case I have to quick back out. No upgrading, install the new versions as new installs and importing the config. However, this time I needed to change the IP address of OPT1 and OPT2 afterwards. Those two ports are MPIO ISCSI to my home ESXI 6, 3 luns. This worked well in 11.0.0.4.3330. Well, after I changed the IP addresses, they would not pass packets, checked in Bitvise, connected to ESXI. I set the old IP addresses, still no go. I then reapplied my config and I could ping OPT1 and OPT2, and the ISCSI once again connected. At the console, I then decided to start fresh by assigning the interfaces, and when I did I had quite a surprise. I had chosen all four of my NIC ports (HP NC364T, Intel 82571EB processors) with EMO as the LAN interface, in order through EM3. What happened is I got 3 errors "Warning: A non-numeric value encountered in /etc/rc.initial.setports on line 158." It then listed the LAN port just fine, but OPT1 was EM3, OPT2 was EM2 and there was no OPT3. Needless to say they would not pass packets (yes they were 'active' in the GUI). I then manually set them properly in the GUI but the only one that would pass packets was the LAN interface. Reapplying the config got them working again. I went back to 11.0.0.4.3330 and was able to assign the interfaces just fine and change IPs. Going once again to a new install, this time with no config import, attempting to just set the interfaces triggered the 3 errors again and this time EM3 was listed as both OPT1 and OPT3. So now I am staying at 11.0.0.4.3330 but am wondering if anyone has seen this error and odd behavior. I'm thinking the install USB isn't being created correctly, and have tried making several on different sticks including a new Samsung to rule out bad sticks but the problem continues. This is the setup in my SIG. BTW I had also backed out to 11.0.0.4.3460 which worked fine until I tried to change IPs or assign interfaces.
Tzvia
11.2.0.4 - Omnius (revision 5774)
Supermicro X10SL7-F, Intel Xeon E3-1241 v3, 3.5 GHz
32gigs Pacific Sun ECC 1600MHz
4x Toshiba 3TB NAS drives, 4x Toshiba 4TB NAS drives: ZFS stripped mirrors
4 port Intel NIC
Thermaltake V71 Case (yea it's huge) & EVGA 650W PSU

User avatar
raulfg3
Site Admin
Site Admin
Posts: 5117
Joined: 22 Jun 2012 22:13
Location: Madrid (ESPAÑA)
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#13

Post by raulfg3 »

NAS4Free4Me wrote:
05 Mar 2017 23:53
OK, let's ask this question in a slightly different manner...

On the ZFS, Pools, Information page there are items listed with 0 (zeros) as the numerical response. Should they be zeros or some other numerical value? What do the zeros represent (ie: errors, faults, speed)? If they represent something else then why are they static at zero when the other page (ZFS, Pools, I/O Statistics) have values of non zeros?

Not trying to start a flame war, just trying to better understand what information is being reported.

BTW, I get the same zero values on the ZFS, Pools, Information page and I don't use partitions.
From post of JoseMR:

Code: Select all

Pool Configuration Information

The config field in the zpool status output describes the configuration of the devices in the pool, as well as their state and any errors generated from the devices. The state can be one of the following: ONLINE, FAULTED, DEGRADED, UNAVAIL, or OFFLINE. If the state is anything but ONLINE, the fault tolerance of the pool has been compromised.

The second section of the configuration output displays error statistics. These errors are divided into three categories:

    READ – I/O errors that occurred while issuing a read request

    WRITE – I/O errors that occurred while issuing a write request

    CKSUM – Checksum errors, meaning that the device returned corrupted data as the result of a read request

These errors can be used to determine if the damage is permanent. A small number of I/O errors might indicate a temporary outage, while a large number might indicate a permanent problem with the device. These errors do not necessarily correspond to data corruption as interpreted by applications. If the device is in a redundant configuration, the devices might show uncorrectable errors, while no errors appear at the mirror or RAID-Z device level. In such cases, ZFS successfully retrieved the good data and attempted to heal the damaged data from existing replicas.

For more information about interpreting these errors, see Determining the Type of Device Failure.

Finally, additional auxiliary information is displayed in the last column of the zpool status output. This information expands on the state field, aiding in the diagnosis of failures. If a device is FAULTED, this field indicates whether the device is inaccessible or whether the data on the device is corrupted. If the device is undergoing resilvering, this field displays the current progress.

For information about monitoring resilvering progress, see Viewing Resilvering Status.
Scrubbing Status

So YES, MUST be ZERO, otherwise are sign of fail.
12.0.0.4 (revision 6766)+OBI on SUPERMICRO X8SIL-F 8GB of ECC RAM, 12x3TB disk in 3 vdev in RaidZ1 = 32TB Raw size only 22TB usable

Wiki
Last changes

HP T510

taffeys
Starter
Starter
Posts: 35
Joined: 13 Nov 2013 21:09
Location: San Diego, California USA
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#14

Post by taffeys »

Thank you raulfg3 and JoseMR for explaining that the values shown on the ZFS, Pools, Information page are for I/O errors.
But , I have a question, why do you use partitions and not entire disk?.
I have never partitioned any of the drives in this system. why do you ask that?
*Dell PowerEdge T20, Xeon E3-1286L v3 3.2GHz (4.0GHz Turbo) 65W TDP, 32GB DDR3L-1600 ECC RAM, Dell 80 PLUS Gold 365W PSU, Intel I350-T2 2-port NIC, LSI 9211-8i HBA ("IT" mode), 7 x 4TB Seagate NAS HDD (ZFS raid Z3 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.
*ASRock Rack E3C226D21 Mini-ITX, Xeon E3-1275L v3 2.7GHz (3.9GHz Turbo) 45W TDP, Noctua NH-L9i CPU cooler, 16GB DDR3L-1600 ECC RAM, picoPSU-160-XT, CFI A6039 NAS Server Mini-ITX Case, 5 x 4TB Seagate NAS HDD (ZFS raid Z1 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.

User avatar
raulfg3
Site Admin
Site Admin
Posts: 5117
Joined: 22 Jun 2012 22:13
Location: Madrid (ESPAÑA)
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#15

Post by raulfg3 »

taffeys wrote:
07 Mar 2017 00:22
Thank you raulfg3 and JoseMR for explaining that the values shown on the ZFS, Pools, Information page are for I/O errors.
But , I have a question, why do you use partitions and not entire disk?.
I have never partitioned any of the drives in this system. why do you ask that?
your pool show disk as ada0p1, ada1p1, etc... this mean that you use partitioned disk instead of entire disk.


Perhaps do you create your pool in FreeNAS and import here?.


Is not really relevant, only for your information.
12.0.0.4 (revision 6766)+OBI on SUPERMICRO X8SIL-F 8GB of ECC RAM, 12x3TB disk in 3 vdev in RaidZ1 = 32TB Raw size only 22TB usable

Wiki
Last changes

HP T510

taffeys
Starter
Starter
Posts: 35
Joined: 13 Nov 2013 21:09
Location: San Diego, California USA
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#16

Post by taffeys »

Perhaps do you create your pool in FreeNAS and import here?.
No, these disks have only ever been used by NAS4Free and have never been partitioned by me.

So somewhere during the upgrades to NAS4Free from 9 to 10 to 11 these disks have now become partitioned. How can that happen?

I did change back to the native HP AMD AHCI SATA controller from an LSI 9211-8i HBA; could that have triggered this?
*Dell PowerEdge T20, Xeon E3-1286L v3 3.2GHz (4.0GHz Turbo) 65W TDP, 32GB DDR3L-1600 ECC RAM, Dell 80 PLUS Gold 365W PSU, Intel I350-T2 2-port NIC, LSI 9211-8i HBA ("IT" mode), 7 x 4TB Seagate NAS HDD (ZFS raid Z3 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.
*ASRock Rack E3C226D21 Mini-ITX, Xeon E3-1275L v3 2.7GHz (3.9GHz Turbo) 45W TDP, Noctua NH-L9i CPU cooler, 16GB DDR3L-1600 ECC RAM, picoPSU-160-XT, CFI A6039 NAS Server Mini-ITX Case, 5 x 4TB Seagate NAS HDD (ZFS raid Z1 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.

User avatar
raulfg3
Site Admin
Site Admin
Posts: 5117
Joined: 22 Jun 2012 22:13
Location: Madrid (ESPAÑA)
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#17

Post by raulfg3 »

taffeys wrote:
07 Mar 2017 16:37
Perhaps do you create your pool in FreeNAS and import here?.
No, these disks have only ever been used by NAS4Free and have never been partitioned by me.

So somewhere during the upgrades to NAS4Free from 9 to 10 to 11 these disks have now become partitioned. How can that happen?

I did change back to the native HP AMD AHCI SATA controller from an LSI 9211-8i HBA; could that have triggered this?
is impossible that change in the upgrade.


Please execute command history ( by shell or webGUI) and revise exact command send to create your pool and the time of it.


example in my NAS:

You do not have the required permissions to view the files attached to this post.
12.0.0.4 (revision 6766)+OBI on SUPERMICRO X8SIL-F 8GB of ECC RAM, 12x3TB disk in 3 vdev in RaidZ1 = 32TB Raw size only 22TB usable

Wiki
Last changes

HP T510

taffeys
Starter
Starter
Posts: 35
Joined: 13 Nov 2013 21:09
Location: San Diego, California USA
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#18

Post by taffeys »

Please execute command history ( by shell or webGUI) and revise exact command send to create your pool and the time of it.
Thank you your advice and inputs.

So here it is. The pool was created with vdevs identified as partitions

History for 'Pool':
2016-09-22.09:21:01 zpool create -m /mnt/Pool Pool raidz1 /dev/ada0p1 /dev/ada1p1 /dev/ada2p1 /dev/ada3p1
2016-09-22.09:22:57 zfs create -o aclinherit=restricted -o aclmode=discard -o atime=off -o casesensitivity=sensitive -o compression=off -o dedup=off -o sync=standard Pool/Share
2016-09-22.09:27:18 zpool import -d /dev -f -a
2016-09-22.09:33:13 zpool import -d /dev -f -a
2016-09-22.10:25:17 zpool import -d /dev -f -a
2016-09-22.10:50:45 zpool import -d /dev -f -a
2016-09-22.11:02:08 zpool import -d /dev -f -a
2016-09-22.13:21:44 zpool import -d /dev -f -a
2016-09-22.15:33:34 zpool import -d /dev -f -a
2016-09-22.15:40:57 zpool import -d /dev -f -a
2016-09-22.15:49:27 zpool import -d /dev -f -a
2016-09-22.16:13:06 zpool import -d /dev -f -a

Again, I have never intentionally partitioned any of the drives in this box (or the drives in any of my other boxes running NAS4Free on ZFS). In fact, I did not even know that xxxpx indicated a partition. I do not recall ever seeing this nomenclature in any documentation.

I have always done complete zero-fill wipes to every drive to remove all metadata before installing them in my servers. So I would have had to format them in NAS4Free. Do you think that when these drives became partitioned?

Since this server is not a production box I think I will remove each drive from the pool one-by-one, scan and wipe each one, format, and then bring each back into the pool. Or would you do it differently?
*Dell PowerEdge T20, Xeon E3-1286L v3 3.2GHz (4.0GHz Turbo) 65W TDP, 32GB DDR3L-1600 ECC RAM, Dell 80 PLUS Gold 365W PSU, Intel I350-T2 2-port NIC, LSI 9211-8i HBA ("IT" mode), 7 x 4TB Seagate NAS HDD (ZFS raid Z3 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.
*ASRock Rack E3C226D21 Mini-ITX, Xeon E3-1275L v3 2.7GHz (3.9GHz Turbo) 45W TDP, Noctua NH-L9i CPU cooler, 16GB DDR3L-1600 ECC RAM, picoPSU-160-XT, CFI A6039 NAS Server Mini-ITX Case, 5 x 4TB Seagate NAS HDD (ZFS raid Z1 data), 1 x Samsung 850 PRO 256GB SSD L2ARC.

NAS4Free4Me
NewUser
NewUser
Posts: 14
Joined: 27 Nov 2012 11:19
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#19

Post by NAS4Free4Me »

Hello:

Thank you all for the clarification as to what information is being presented on the ZFS, Pools, Information page.

I must retract a comment I made. I was under the impression I did not partition my 5 x 3.0 TB Seagate drive but based on the information presented by raulfg3 my drives show similar to ada0p1, ada1p1... ada4p1. So I obviously partitioned my disk without realizing it, and I find that most disturbing.

So... What is the proper way to format the drives without partitioning them for a ZFS Raid1 configuration? Please list all steps. I'm not a newbie but obviously what I that I was doing to not create a partition is not right so I guess I need me some schooling. Any help is greatly appreciated.

Thank you in advance.
NAS-A = MB: Asus H87M-E, CPU: Intel i5-4590 CPU @ 3.30GHz, RAM: 16GB, HDD: ZFS-R1 / 3.0 TB (x5) Seagate Barracuda 7200.14 (AF)

User avatar
JoseMR
Hardware & Software Guru
Hardware & Software Guru
Posts: 1143
Joined: 16 Apr 2014 04:15
Location: PR
Contact:
Status: Offline

Re: NAS4Free 11.0.0.4.3958 released (FreeBSD 11.0-RELEASE-P8)

#20

Post by JoseMR »

Hello there, using raw(whole) drives was the recommendation in the ZFS old days, and have just one advantage to me, simplicity and nothing more, while having several disadvantages/limitations on nowadays disk drives.

Formatting the drives with GPT will bring nice benefits, from partition alignment, custom ZFS partitions, custom partition identification labels etc., and NAS4Free creates them if the option "Create ZFS on a GPT partition" was explicitly checked.

So users with Native 4K AF(4Kn) drives should use and take the advantages from the ZFS on GPT.

Note: Users with Native 4K AF drives need to create a new entry under "System > Advanced > sysctl.conf" with the following values for optimal performance:

Code: Select all

Name: vfs.zfs.min_auto_ashift
Value: 12
Comment: ZFS ashift = 12

Regards
System: FreeBSD 12 RootOnZFS Mirror, MB: Supermicro X8SI6-F, Xeon X3450, 16GB DDR3 ECC RDIMMs.
XigmaNAS RootOnZFS
Addons at GitHub
BastilleBSD
Boot Environments Intro
Resources Home Page

Post Reply

Return to “Release Builds”
