NAS4Free 9.2.0.1.925 Released (FreeBSD 9.2-RELEASE p2)

[lux]

or upgrade via LiveCD/LiveUSB

[Ouroborus]

The s.m.a.r.t. monitoring with e-mail reports and s.m.a.r.t. settings saving does not seem to work. Something like "Error: Could not save changes (error code 1)". Reverted back and then ok. Separate sticks for each version.

[big_bossde]

Upgraded my Nas4free 9.1.0.1 embedded to 9.2.0.1 via webgui without any issues.
As desribed I had to clear config and import disks.
Upgrade of ZFS pools worked like a charm.
May I expect probs with my install?

NAS4Free 9.2.0.1 (revision 925) x64-embedded on 8GB usb-stick; AMD Athlon(tm) Dual Core Processor 4450e; 8GB RAM; 1 x Seagate 3 GB with ZFS, 4 x Samsung HD502IJ as ZRAID1 and SAMSUNG HD103UJ as ISCSI target

[DL84]

well this is nice, having the same usb problems like the beta..im booting the system up and then i get a "couldn reattach usb" error and of course the usb stick isn't being read anymore and nothing loads..using an asus h87i plus board with the intel h87 chipset..what could be wrong?

[tuaris]

The arcsas driver is not loaded by default on this release. Also it looks like "System|Advanced|loader.conf" has no effect. I had to manually add it to /cf/boot/loader.conf.

Other than that the upgrade was successful using the webgui.

Should I worry about this:

Code: Select all

/dev/ada0a                     117M    112M    4.8M    96%    /cf

Not sure why it shows 117M, this is a 1GB flash drive.

[raulfg3]

Not sure why it shows 117M, this is a 1GB flash drive.

Detalles del mensaje

because N4F DO NOT use all disk , only a small partition (117MB) so you can use rest of your boot disk as swap and/or data disk, if you want to have more free space on your boot partition, you MUST do a full install and whem promt about size for boot parttition define what you want, other wise default is used like is used on embeded.

[neptunus]

Random reboots with NAS4Free 9.2.0.1.925 Released.

I think it is a IRQ problem. Can some one help me?

Code: Select all

sideswipe: / # vmstat -i
interrupt                          total       rate
irq1: atkbd0                           6          0
irq15: ata1                          161          0
irq17: mpt0                         3017         16
cpu0:timer                         10026         54
irq256: vmx3f0                      2830         15
irq257: mps0                        2591         14
irq258: mps1                        6753         36
cpu3:timer                          1937         10
cpu1:timer                          1984         10
cpu2:timer                          1896         10
Total                              31201        168

Code: Select all

sideswipe: / # dmesg | grep irq
mps1: <LSI SAS2008> port 0x6000-0x60ff mem 0xd2600000-0xd2603fff,0xd2640000-0xd267ffff irq 16 at device 0.0 on p                                       ci19
atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
psm0: <PS/2 Mouse> irq 12 on atkbdc0
vmx3f0: <VMware Vmxnet3 Ethernet Controller> port 0x4000-0x400f mem 0xd2404000-0xd2404fff,0xd2403000-0xd2403fff,                                       0xd2400000-0xd2401fff irq 18 at device 0.0 on pci3
vmx3f0: Allocating MSIx irq failed, error : 6
ioapic0 <Version 1.1> irqs 0-23 on motherboard
attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
vgapci0: <VGA-compatible display> port 0x10d0-0x10df mem 0xd8000000-0xdbffffff,0xd0800000-0xd0ffffff irq 16 at d                                       evice 15.0 on pci0
mpt0: <LSILogic 1030 Ultra4 Adapter> port 0x1400-0x14ff mem 0xd0040000-0xd005ffff,0xd0020000-0xd003ffff irq 17 a                                       t device 16.0 on pci0
vmx3f0: <VMware Vmxnet3 Ethernet Controller> port 0x4000-0x400f mem 0xd2404000-0xd2404fff,0xd2403000-0xd2403fff,                                       0xd2400000-0xd2401fff irq 18 at device 0.0 on pci3
mps0: <LSI SAS2008> port 0x5000-0x50ff mem 0xd2500000-0xd2503fff,0xd2540000-0xd257ffff irq 19 at device 0.0 on p                                       ci11
mps1: <LSI SAS2008> port 0x6000-0x60ff mem 0xd2600000-0xd2603fff,0xd2640000-0xd267ffff irq 16 at device 0.0 on p                                       ci19
atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
psm0: <PS/2 Mouse> irq 12 on atkbdc0
ioapic0 <Version 1.1> irqs 0-23 on motherboard
attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
vgapci0: <VGA-compatible display> port 0x10d0-0x10df mem 0xd8000000-0xdbffffff,0xd0800000-0xd0ffffff irq 16 at d                                       evice 15.0 on pci0
mpt0: <LSILogic 1030 Ultra4 Adapter> port 0x1400-0x14ff mem 0xd0040000-0xd005ffff,0xd0020000-0xd003ffff irq 17 a                                       t device 16.0 on pci0
vmx3f0: <VMware Vmxnet3 Ethernet Controller> port 0x4000-0x400f mem 0xd2404000-0xd2404fff,0xd2403000-0xd2403fff,                                       0xd2400000-0xd2401fff irq 18 at device 0.0 on pci3
mps0: <LSI SAS2008> port 0x5000-0x50ff mem 0xd2500000-0xd2503fff,0xd2540000-0xd257ffff irq 19 at device 0.0 on p                                       ci11
mps1: <LSI SAS2008> port 0x6000-0x60ff mem 0xd2600000-0xd2603fff,0xd2640000-0xd267ffff irq 16 at device 0.0 on p                                       ci19
atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
psm0: <PS/2 Mouse> irq 12 on atkbdc0
ioapic0 <Version 1.1> irqs 0-23 on motherboard
attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
vgapci0: <VGA-compatible display> port 0x10d0-0x10df mem 0xd8000000-0xdbffffff,0xd0800000-0xd0ffffff irq 16 at d                                       evice 15.0 on pci0
mpt0: <LSILogic 1030 Ultra4 Adapter> port 0x1400-0x14ff mem 0xd0040000-0xd005ffff,0xd0020000-0xd003ffff irq 17 a                                       t device 16.0 on pci0
vmx3f0: <VMware Vmxnet3 Ethernet Controller> port 0x4000-0x400f mem 0xd2404000-0xd2404fff,0xd2403000-0xd2403fff,                                       0xd2400000-0xd2401fff irq 18 at device 0.0 on pci3
mps0: <LSI SAS2008> port 0x5000-0x50ff mem 0xd2500000-0xd2503fff,0xd2540000-0xd257ffff irq 19 at device 0.0 on p                                       ci11
mps1: <LSI SAS2008> port 0x6000-0x60ff mem 0xd2600000-0xd2603fff,0xd2640000-0xd267ffff irq 16 at device 0.0 on p                                       ci19
atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
psm0: <PS/2 Mouse> irq 12 on atkbdc0

Below a summary of the IRQ's:
atkbdc0: <Keyboard controller (i8042)> irq 1
atkbd0: <AT Keyboard> irq 1
psm0: <PS/2 Mouse> irq 12
vmx3f0: <VMware Vmxnet3 Ethernet Controller> irq 18
vmx3f0: Allocating MSIx irq failed, error : 6
ioapic0 <Version 1.1> irqs 0-23
attimer0: <AT timer> irq 0
atrtc0: <AT realtime clock> irq 8
vgapci0: <VGA-compatible display> irq 16
mpt0: <LSILogic 1030 Ultra4 Adapter> irq 17
vmx3f0: <VMware Vmxnet3 Ethernet Controller> irq 18
mps0: <LSI SAS2008> irq 19
mps1: <LSI SAS2008> irq 16
atkbdc0: <Keyboard controller (i8042)> irq 1
atkbd0: <AT Keyboard> irq 1
psm0: <PS/2 Mouse> irq 12

Suspects:
- vmx3f0 because of Allocating MSIx irq failed, error : 6
- vgapci0 and mps1 same IRQ.

[RedAntz]

The arcsas driver is not loaded by default on this release. Also it looks like "System|Advanced|loader.conf" has no effect. I had to manually add it to /cf/boot/loader.conf.

Other than that the upgrade was successful using the webgui.

Hi tuaris.

What is your exact variable specified in loader.conf ? I have no problem executing in both full install and embedded install.

arcsas_load = YES
or
arcmsr_load = YES

is what you need. I loaded others for testing purpose.

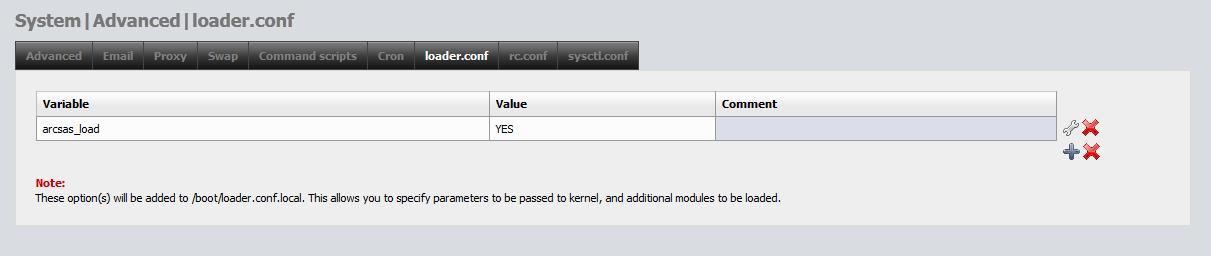

See screenshot below :-

[tuaris]

I have:



But no loader.conf.local in my /boot:

Code: Select all

storage: /boot # ls
boot     boot1    gptboot  mbr      pmbr     zfs
boot0    defaults kernel   modules  pxeboot

[RedAntz]

*edited* My bad. Misread your post in a hurry.

If you use full install, it's located at /boot/ , if it's embedded, then it's at /cf/boot/ like what alexey123 mentioned below.

[alexey123]

But no loader.conf.local in my /boot:

Code: Select all

storage: /boot # ls
boot     boot1    gptboot  mbr      pmbr     zfs
boot0    defaults kernel   modules  pxeboot

Hi
Check

Code: Select all

ls /cf/boot

[luzemario]

loader.conf.local IS NOT executed. Not even on 9.2.0.1-943. Please see my feature request:

viewtopic.php?f=56&t=6094
